The Story

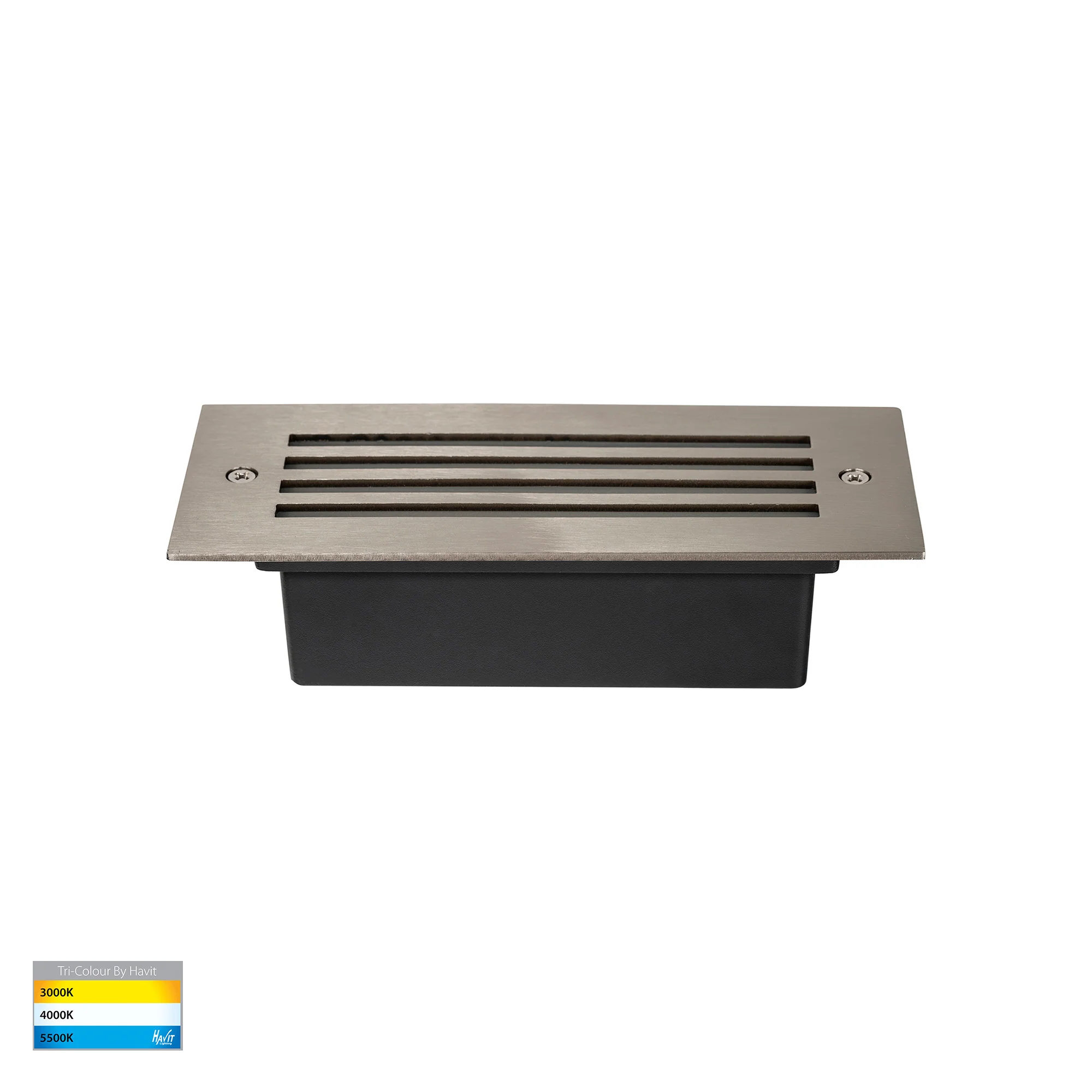

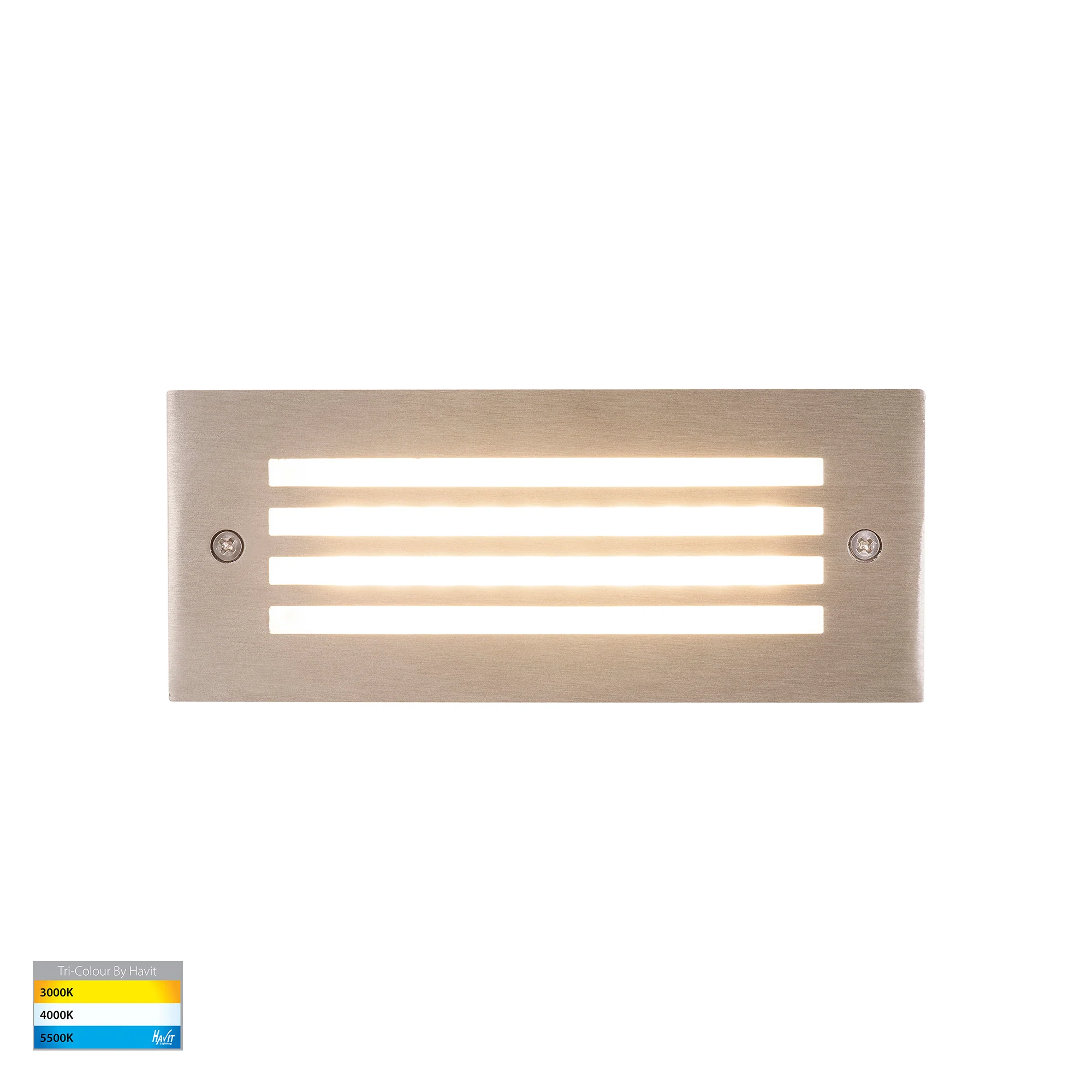

- Bata Recessed Brick light with grill face
- Stainless Steel 316 Marine Grade Cover
- Powder coated die-cast aluminium body

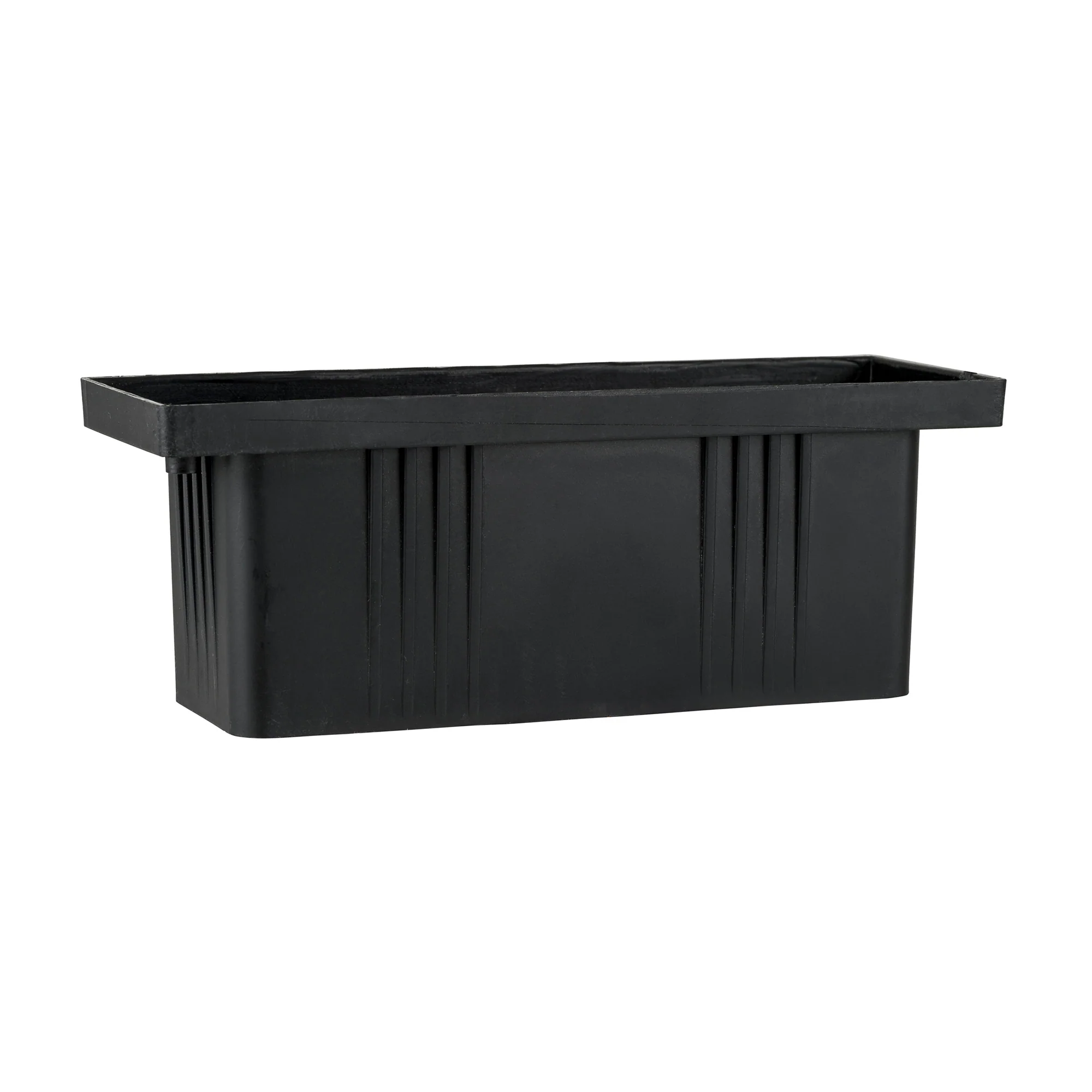

- Cutout with Canister: 159mm x 58mm
- Cutout Without Canister: 155mm x 50mm
- Installation Depth: 60mm
- Frosted tempered glass
- Tri Colour - 3000k, 4000k, 5500k

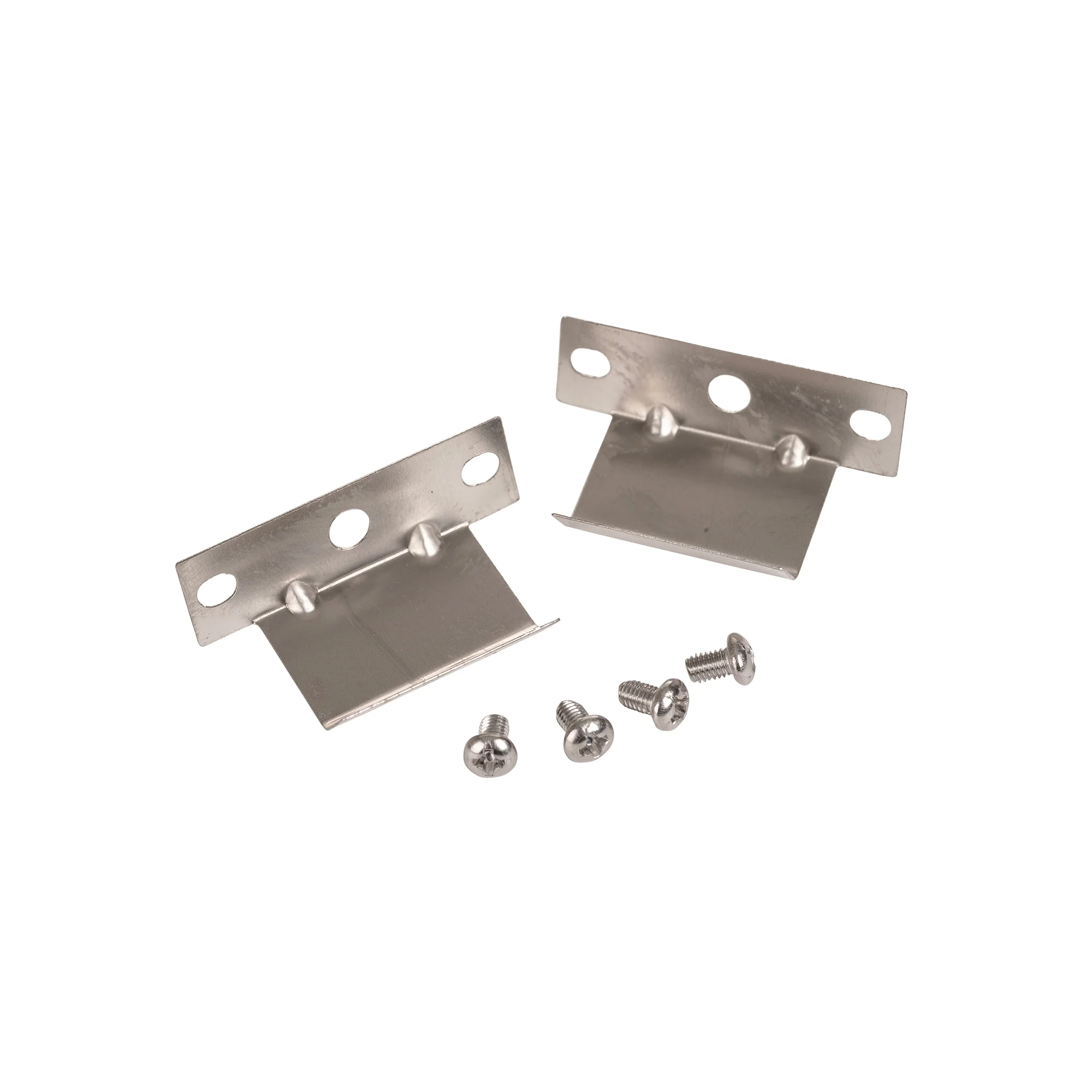

- Supplied with Clips for use in Gyprock Walls
- Suitable for installation in wall
- IP Rating: IP54
- Input voltage: 240v AC or 12v DC
- Built in 6w LED
- 3 Years Replacement warranty (items ordered after 01/01/22)
12v Model must be used with suitable 12v DC LED driver - View Here
All 316 Stainless Steel fittings require a maintenance routine - View Here for Product and Instruction Video
Product Information
| Part Number | Colour Temp | Lumens | Included LED | Input Voltage |
| HV3006T-SS316-12V | 3000k 4000k 5500k |
480lm 510lm 540lm |
6w 12v DC Built in LED |
12v DC |
| HV3006T-SS316-240V | 3000k 4000k 5500k |
480lm 510lm 540lm |
6w 240v Built in LED |
240v |
Data Sheet
IES Files
Install Sheet
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Bata Recessed Brick light with grill face
- Stainless Steel 316 Marine Grade Cover
- Powder coated die-cast aluminium body
- Cutout with Canister: 159mm x 58mm
- Cutout Without Canister: 155mm x 50mm
- Installation Depth: 60mm
- Frosted tempered glass
- Tri Colour - 3000k, 4000k, 5500k
- Supplied with Clips for use in Gyprock Walls
- Suitable for installation in wall
- IP Rating: IP54
- Input voltage: 240v AC or 12v DC
- Built in 6w LED
- 3 Years Replacement warranty (items ordered after 01/01/22)
12v Model must be used with suitable 12v DC LED driver - View Here
All 316 Stainless Steel fittings require a maintenance routine - View Here for Product and Instruction Video
Product Information
| Part Number | Colour Temp | Lumens | Included LED | Input Voltage |
| HV3006T-SS316-12V | 3000k 4000k 5500k |
480lm 510lm 540lm |
6w 12v DC Built in LED |
12v DC |
| HV3006T-SS316-240V | 3000k 4000k 5500k |
480lm 510lm 540lm |
6w 240v Built in LED |
240v |
