$36.61
Original: $104.60

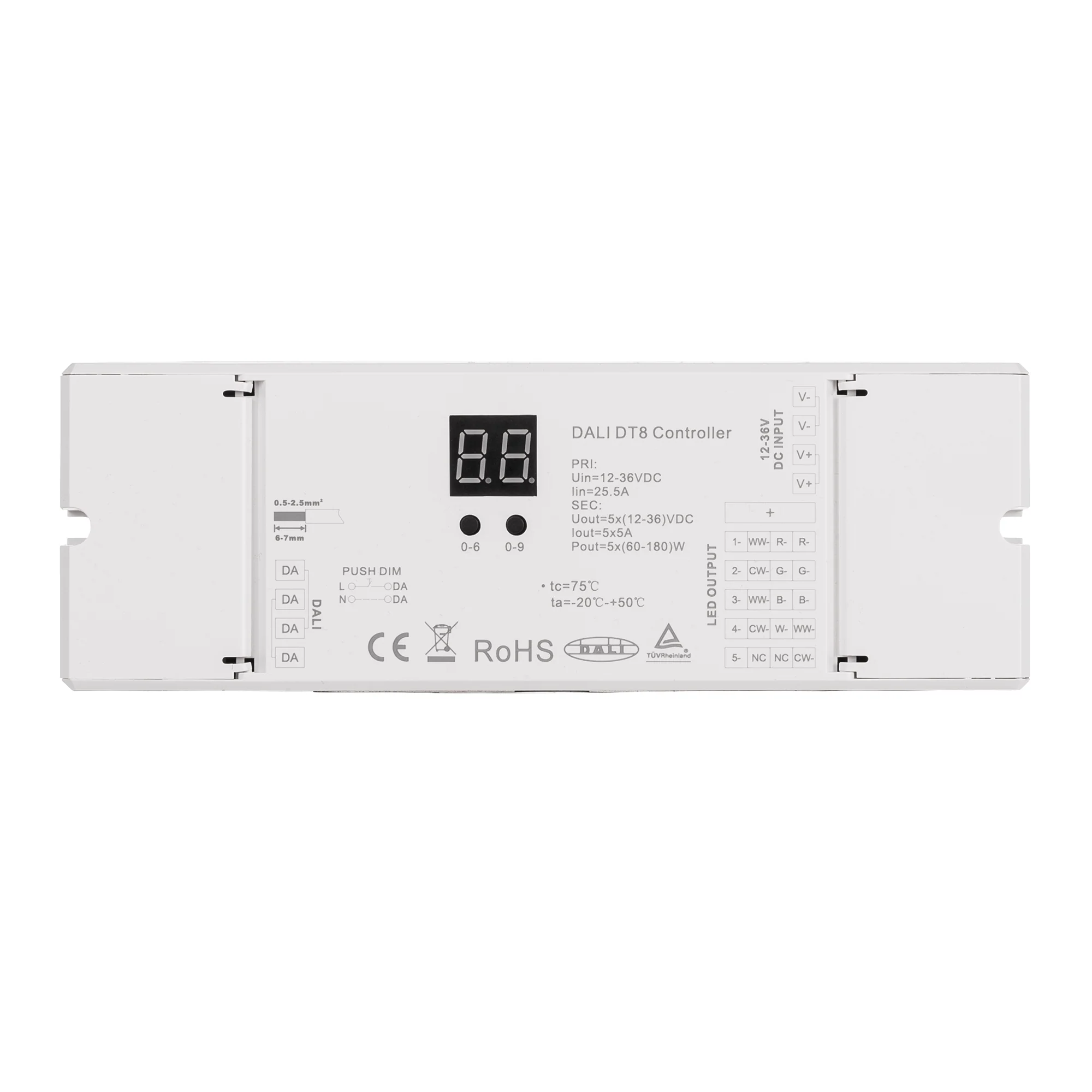

-65%HV9107-2309P-5C - Dali DT8 LED Strip Controller—
$104.60
$36.61The Story
- Dali DT8 LED strip controller
- For use with CT, RGBW + RGBCW LED strip
- Built-in DALI-2 interface, DALI DT8 device
- Multi-addresses enabled DT8 control gear
- Multi-devices integrated in one control gear
- Multi-functional, 7 in 1: Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
- DALI address manually assignable through manual set buttons and showed on the display
- Can be set as different device types: single-address types or multi-addresses types
- Single-address device types: Tc, RGBWAF, XY
- Multi-addresses device types: 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
- 5 Channels constant voltage output
- Control of five PWM outputs via DALI device type 8
- Colour control as defined in the DALI specification device type 8
- Supports DT8 device commands, compatible with universal DALI masters that support DT8 commands
- Configuration via DALI master USB interface
- Colour temperature and RGB Colour control through push dim mode even without DALI
- Input voltage: 12v DC or 24v DC
- Max Load: 12v DC 300w / 24v DC 600w
-
3 years replacement warranty (items ordered after 01/01/22)
Data Sheet
Install Sheet
Video Instructions
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Dali DT8 LED strip controller
- For use with CT, RGBW + RGBCW LED strip
- Built-in DALI-2 interface, DALI DT8 device
- Multi-addresses enabled DT8 control gear
- Multi-devices integrated in one control gear
- Multi-functional, 7 in 1: Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
- DALI address manually assignable through manual set buttons and showed on the display
- Can be set as different device types: single-address types or multi-addresses types
- Single-address device types: Tc, RGBWAF, XY
- Multi-addresses device types: 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
- 5 Channels constant voltage output
- Control of five PWM outputs via DALI device type 8
- Colour control as defined in the DALI specification device type 8
- Supports DT8 device commands, compatible with universal DALI masters that support DT8 commands
- Configuration via DALI master USB interface
- Colour temperature and RGB Colour control through push dim mode even without DALI
- Input voltage: 12v DC or 24v DC
- Max Load: 12v DC 300w / 24v DC 600w
-
3 years replacement warranty (items ordered after 01/01/22)
